Hydraulic Radial Riveting Machine JM50-PLC

Heavy Duty Riveting Machine

CNC Riveting Machine

鉚接機旋鉚機自動鉚接機

JM50-PLC Hydraulic Radial Riveting Machine is developed on the basis of JM-40 model,we apply stroke monitoring and pressure displaying to JM50-PLC, The obvious advantage is to increase fatigue strength, smooth surface and processing efficiency.

Heavy duty riveting machine apply to large diameter riveting process,such as aerospace device, heavy hydro-power generating units, large parts processing industry, etc .

The maximum diameter of rivets is 50 mm in cold forming and 70mm in hot upset forming riveting. This type of machine is radial structure with hydraulic force, programmable control,LCD touch screen.

Specific parameters provided by the users, we design and manufacture them. We will customize as your requirement.

     JM50

JM50徑向鉚接機

主要特點

1、TYPE JM50-PCL,Max.riveting pressure 220KN, Max. working stroke 50mm.

2、The descent rate of spindle is stepless adjustable.

3、Workbench equipped with index indication that can be exactly lift up and down.

4、The control system is applied to SIEMENS PLC system.

5、The PLC control system equipped with weight sensor so that it can measure riveting pressure and indicated by numbers on the screen.As well, it equiped with grating ruler so that it can control the working stroke and indicated by numbers on the screen.

6、The riveting time and displacement can be controlled on automatic model.

7、The parameter of riveting pressure, riveting processing time, non- axial feed delay time and riveting stroke during the manufacturing process can be record and stored in the computer (optional item for upgrading).

8、We will provide operation training critical spare parts purchasing list for your convenience.

9、The production color is painted strictly according to the standard color card for good looking.

10、JM40-PLC is equipped with workpieces feeding crosswise workbench, the workbench is driven by hydraulic oil cylinder to feed workpieces. What human's job is only put the workpieces into correct position and push the START button, then the riveting machine will be complete the whole processing automatically.

Electrical control system details:

Master controller:SIEMENS PLC system

Self-diagnostic:Mainly used for starting detection if machine is ready to start or not,the holder is in correct position or not.

Starting control circuit:The machine will start to run when two starting button press at the same time.

Position sensor:Riveting stroke will be displayed on screen.

Pressure sensor:Mainly use to detect riveting pressure of the workpieces and it will be displayed on screen.

Data input:Users can set the parameter of riveting pressure, timer, and working stroke on the screen of control system.

Workpieces counter:The completed workpieces number.

Positioning control:The spindle position is controlled on Auto mode.

Mode Selection:The mode switch can select the modes to Auto, Manuel and Semi-Auto on the control panel.

Spindle start-stop button:The spindle motor will be started by pushing the START button as well as stopped by pushing the STOP button on the screen, also you can push the button in the control box.

Hydraulic start-stop button:The hydraulic oil pump will be started by pushing the START button as well as stopped by pushing the STOP button on the screen, also you can push the button in the control box.

Pressure reset:The riveting pressure will be reset to zero.

Position reset:The position of spindle will return to zero position whether its working position.

Counter reset:The wokpieces counter will be reset to zero for next processing.

Emergency stop:The machine will be shut down for emergency situations.

Control mode conversion:The machine default setting is timer control state, you can select timer control, position control or pressure control.

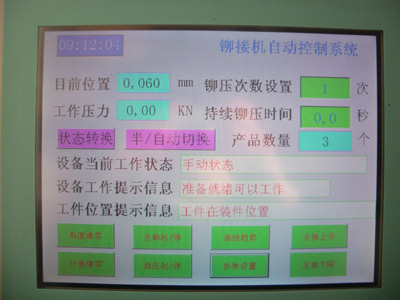

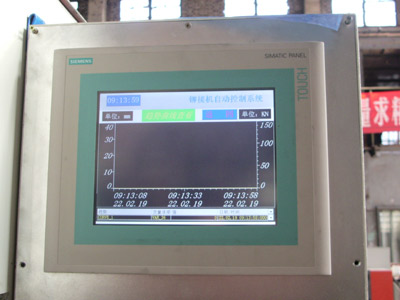

JM50-PLC Riveting machine operating interface

Parameters   JM50

Diameter range

  Φ10~Φ50
Max. Riveting Pressure   220KN
Max. Delivery Pressure( Oil Pump)   2.5MPa
Max. Stroke Length   60MM
Max. Height (powerhead to workbench)   280MM
Positioning Hole Diameter   Φ26
Rivets Extend Length   85MM
Electric Power       15Kw
Rotary Direction (oil pump motor)   Clockwise
Net Weight   3600Kg
This machine is the standard model, cutomized machine is available if you like more heavy duty. Customized machine see the picture below
                         Maximum riveting diameter is 80mm in cold forming.

Video---CNC Wheel Hub Bearing Riveting Machine

High definition Video,Please click CNC Wheel Hub Bearing Riveting Machine

鉚接機旋鉚機自動鉚接機

Upgrade project
Micro adjusting index Automatic lubricator Integration control panel PLC pressure monitor

Service Promise

We will practice our commitment to customers, and strive to make customers trust of purchase, we guarantee to provide customers needs.

Service Items

Pre-market after-sale technical advisory services

Free technical guidance. Free sample riveting. Free mail specimen.

Two years warranty

Equipment quality issues will be replaced or free maintenance service.

One year free change promise

Free to change brand new same model of equipment within one year if major fault occure under normal operation, the major faults should must be follow warranty terms and conditions.

Whole-life service

Warranty of riveting machine also provide after-sales service, only charge you for service and replacement parts cost.

48 hours on-site emergency maintenance

For purchasing more than 5 sets machines of customers, on-site maintenance services carry out within 48 hours for major problems during the warranty period.(See Instruction Manual).Non- warranty period should charge for the maintenance.
