Pneumatic Orbital Riveting Machine-BM9Q

Spin Riveting Machine

Vertical type

鉚接機旋鉚機自動鉚接機

液壓立式鉚接機

Model:BM9Q

■Vertical type, medium size riveting design
■Long sroke length 0-60mm
■Max. riveting diameter 9mm (solid steel rivet)
■Pneumatic driven, Stepless pressure regulation, Bi-directional speed adjustable
■Air filter and dryer, spraying lubrication
■Reserved air connector for pneumatic synchronous clamp
■Square lifting platform with large stroke length,locked by handle
■Wden workbench with T shape positioning hole
■Low noise riveting machine
■Electric control box equipped with fully functional LCD screen
■Adjustable riveting time, Mode selection: Auto/Manual
■Ergonomic design, easy operation

BM9Q

Application scope: Automobile and motorcycle accessories, Aircraft, Construction hardware, etc.
  The dimesion may customize as your requirement.

BM9Q is a medium size and Vertical type orbital riveting machine driven by Pneumatic power. It adopts the fifth generation of orbital technology-advanced cold rolling technology. It is applicable for larger diameter of rivets than that of BM6 series.

The adjustable head can be lifted up and down by turning of screw pole and it can control the rough adjusting effectively, while micro adjusting is controlled by the powerhead in screw cap. The center hole of workbench are coaxial with the spindle,it is useful for positioning and holding the workpiece tightly.

The double air regulators can be used to control riveting speed effectively and the air hose equippped with air filter for preventing moisture

The counter on the electricity control panel can be used to count the quantity of riveted work pieces.The good quality of all units on this machine ensure the smooth surface of workpiece and stability of processing.

徑向氣動旋鉚機 徑向氣動鉚接機
BM9Q Front BM9Q Back
 鉚接機旋鉚機自動鉚接機
Parameters of Pneumatic Riveting Machine BM9TQ
 Riveting Diameter Range         Φ2~Φ9
 Max. riveting pressure             14KN
 Max. stroke              30MM
  Max. height (from powerhead to the workbench)           245MM
  Max. height of workbench lifting                245MM
Diameter of positioning hole          Φ16
 Max. Distance( from powerhead to guide rail)  160MM
  Extend length of rivets            Standard 50MM
  Workbench size        260MM×230MM
 Power                             0.55Kw
Direction of oil pump rotation        Clockwise
 Dimension 730MM×490MM×1470MM (Not including oil container)
Net weight                   250Kg
Air supply        Pressure 4-5kgf/cm2  Flow 0.05m3/min
 鉚接機旋鉚機自動鉚接機
鉚接機

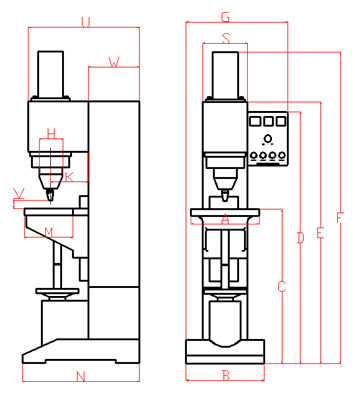

BM9Q (mm)
A B C D E F G H K M S U V W
260 400 800可調 1150 1220 1500 490 Φ110 160 230 500 200 452 245 200
                              We reserve the right to modify the dimension parameters without prior notice.
液壓立式旋鉚機

Pressure calculation chart(Stepless pressure regulation)

鉚接機旋鉚機自動鉚接機



Video--Testing of Orbital Riveting Machine

The qualified Orbital riveting machine must should have slow and stability rotary of powerhead movement, as well must should be low noise.Let's watch this video about our products.

High definition Video,Please clickVideo--Testing of Orbital Riveting Machine

Video--Processing workpiece by Orbital Riveting Machine

The processing of workpieces by common orbital riveting machine.

High definition Video,Please click Processing workpiece by Orbital Riveting Machine

鉚接機旋鉚機自動鉚接機

Upgrade project
Micro adjusting index Automatic lubricator Integration control panel PLC pressure monitor

Service Promise

We will practice our commitment to customers, and strive to make customers trust of purchase, we guarantee to provide customers needs.

Service Items

Pre-market after-sale technical advisory services

Free technical guidance. Free sample riveting. Free mail specimen.

Two years warranty

Equipment quality issues will be replaced or free maintenance service.

One year free change promise

Free to change brand new same model of equipment within one year if major fault occure under normal operation, the major faults should must be follow warranty terms and conditions.

Whole-life service

Warranty of riveting machine also provide after-sales service, only charge you for service and replacement parts cost.

48 hours on-site emergency maintenance

For purchasing more than 5 sets machines of customers, on-site maintenance services carry out within 48 hours for major problems during the warranty period.(See Instruction Manual).Non- warranty period should charge for the maintenance.
