Hyraulic Orbital Riveting Machine-BM6T

Spin Riveting Machine

Desktop type

鉚接機旋鉚機自動鉚接機

液壓鉚接機

Model:BM6T

■Desktop type, Handy size, Lightweight
■Max. riveting diameter 6mm(solid steel rivet)
■Hydraulic driven, Stepless pressure regulation
■Safty cover at rotating part for protection
■Widen workbench,Powerhead lift up and down
■Adjustable riveting time, Mode selection: Auto/Manua

BM6T

Application Scope:Instrument and gauges,Sensitive electrical or electronic components, Daily hardware, etc.



The dimesion may customize as your requirement



BM6T is a handy size orbital riveting machine driven by hydraulic power. It adopt the orbital technology-advanced cold rolling technology.

The adjustable head can be lifted up and down by turning of screw pole and it can control the rough adjusting effectively, while micro adjusting is controlled by the powerhead in screw cap. The center hole of workbench are coaxial with the spindle,it is useful for positioning and holding the workpiece tightly.

A flow regulating valve on the high pressure pipe can be used to adjust the rate of riveting process. The counter on the electricity control panel can be used to count the quantity of riveted work pieces.

The best quality of all units on this machine ensure the smooth surface of workpiece and stability of processing.

臺式鉚接機

Parameters of BM6T
Range of workpiece diameter  Φ2-Φ6
Max. working pressure       9KN
Max. delivery pressure of oil pump 2.5MPa
Max. working stroke     20MM
Max. height (from power head to the workbench)   150MM
Max. height of workbench lifting        150MM
Diameter of positioning hole  Φ16
Extend length of rivets            50MM
Workbench size            320MM×400MM
Power                   0.92Kw
Direction of oil pump rotation      Clockwise
Dimension      400MM×320MM×900MM(Not including oil container)
Parameters of Riveting Machines Net weight           125Kg

鉚接機旋鉚機自動鉚接機
液壓旋鉚機

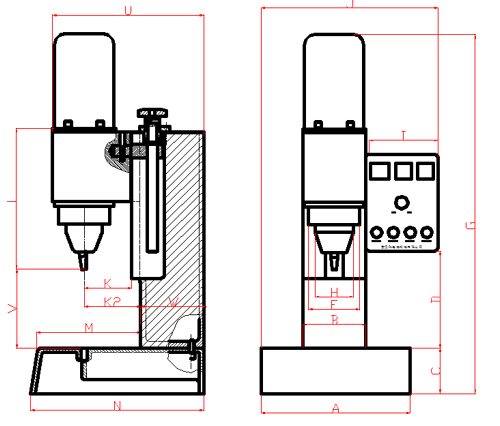

BM6T (mm)
A B C D F G H I J K K2 M T U V W
320 160 90 180 Φ135 800 Φ85 288 420 105 125 225 400 180 365 150 160
We reserve the right to modify the dimension parameters without prior notice.
                      鉚接機旋鉚機自動鉚接機
臺式旋鉚機


Pressure calculation chart(Stepless pressure regulation)

鉚接機旋鉚機自動鉚接機

Video--Testing of Orbital Riveting Machine

The qualified Orbital riveting machine must should have slow and stability rotary of powerhead movement, as well must should be low noise.Let's watch this video about our products.

High definition Video,Please clickVideo--Testing of Orbital Riveting Machine

Video--Processing workpiece by Orbital Riveting Machine

The processing of workpieces by common orbital riveting machine.

High definition Video,Please click Processing workpiece by Orbital Riveting Machine



鉚接機旋鉚機自動鉚接機

Upgrade project
Micro adjusting index Automatic lubricator Integration control panel PLC pressure monitor

Service Promise

We will practice our commitment to customers, and strive to make customers trust of purchase, we guarantee to provide customers needs.

Service Items

Pre-market after-sale technical advisory services

Free technical guidance. Free sample riveting. Free mail specimen.

Two years warranty

Equipment quality issues will be replaced or free maintenance service.

One year free change promise

Free to change brand new same model of equipment within one year if major fault occure under normal operation, the major faults should must be follow warranty terms and conditions.

Whole-life service

Warranty of riveting machine also provide after-sales service, only charge you for service and replacement parts cost.

48 hours on-site emergency maintenance

For purchasing more than 5 sets machines of customers, on-site maintenance services carry out within 48 hours for major problems during the warranty period.(See Instruction Manual).Non- warranty period should charge for the maintenance.
